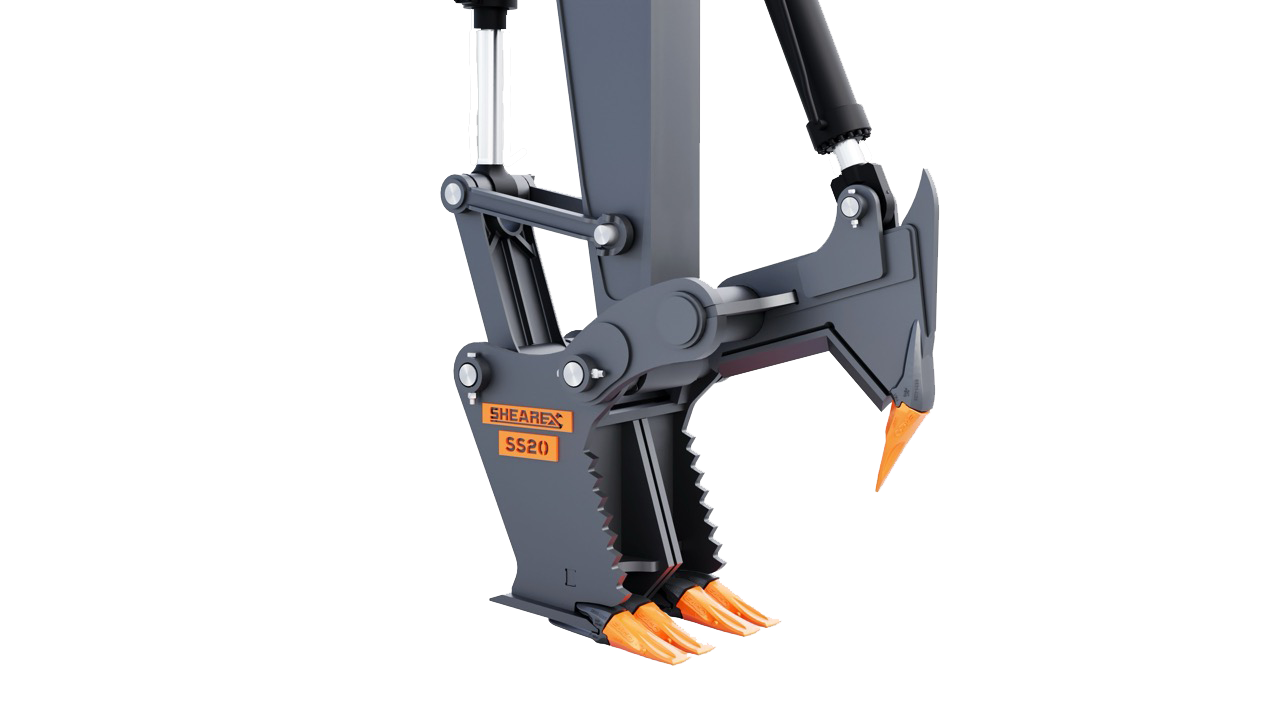

SS Series
Stump Shear
When the job calls for no stumps left behind, the SS series digs in, breaks down, and lifts out stumps — and splits oversized chunks for your shredder. Eight models cover 12-to-50-ton excavators, all with replaceable high-strength teeth. (Mechanical “M” variants available in matching sizes.)
- Powerful digging grip
- Replaceable high-resistance teeth
- Splits oversized wood for shredding
- Easy maintenance
- Built for deep land clearing
Technical Specifications
SS Series · model range
| Model | SS16 | SS20 | SS27 | SS30 | SS40 |
|---|---|---|---|---|---|
| Carrier (tons) | 12–16 | 15–24 | 18–25 | 25–38 | 30–50 |
| Weight lbs (kg) | 2,315 (1,050) | 2,811 (1,275) | 3,858 (1,750) | 5,512 (2,500) | 7,716 (3,500) |
| Opening in (mm) | 52 (1,321) | 58 (1,473) | 64 (1,626) | 68 (1,727) | 72 (1,828) |
| Width in (mm) | 22 (559) | 25 (635) | 30 (762) | 30 (762) | 32 (813) |
| Cut length in (mm) | 21 (533) | 24 (610) | 30 (762) | 31 (787) | 34 (864) |
CompatibilityFor 12 to 50 ton excavators.
Want this one priced for your machine?
Tell us your carrier and what you’re clearing — we’ll confirm the right Stump Shear model and get you a number.
