FHS Series

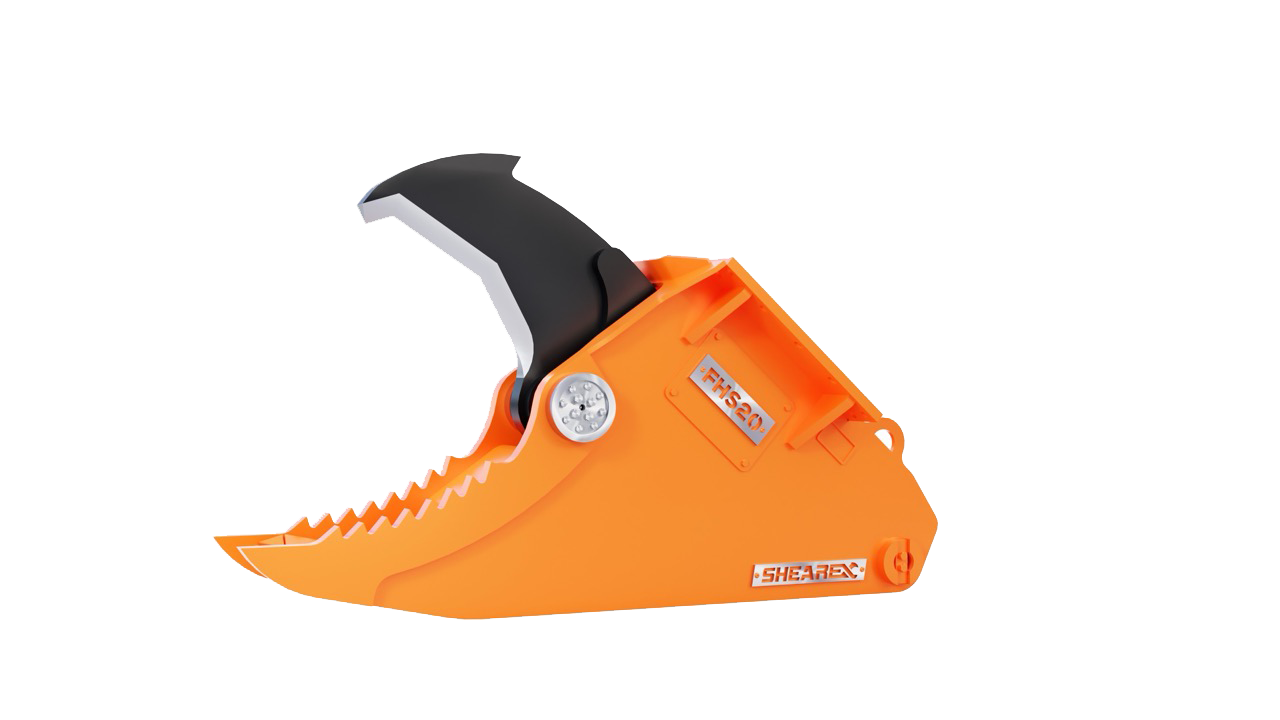

Harvester Shear
The FHS harvester shear reaches below grade to root out stumps, roots, and buried biomass other tools leave behind, and splits large sections for processing. Extreme cutting force in high-grade steel, sized for 15-to-35-ton excavators.
- Extreme cutting force
- High-quality steel construction
- Reaches below grade for roots and biomass
- Low maintenance
Technical Specifications
FHS Series · model range
| Model | FHS20 | FHS30 |
|---|---|---|
| Carrier (tons) | 15–25 | 25–35 |
| Weight lbs (kg) | 2,760 (1,255) | 5,650 (2,568) |
| Opening in (mm) | 39 (990) | 55 (1,400) |
| Width in (mm) | 15 (400) | 18 (457) |
| Depth in (mm) | 28 (711) | 37 (940) |
| Pressure PSI (bar) | 5,000 (350) | 5,000 (350) |
| Cutting force (tons) | 30 | 45 |
CompatibilityFor 15 to 35 ton excavators.
Want this one priced for your machine?
Tell us your carrier and what you’re clearing — we’ll confirm the right Harvester Shear model and get you a number.
