HD Series

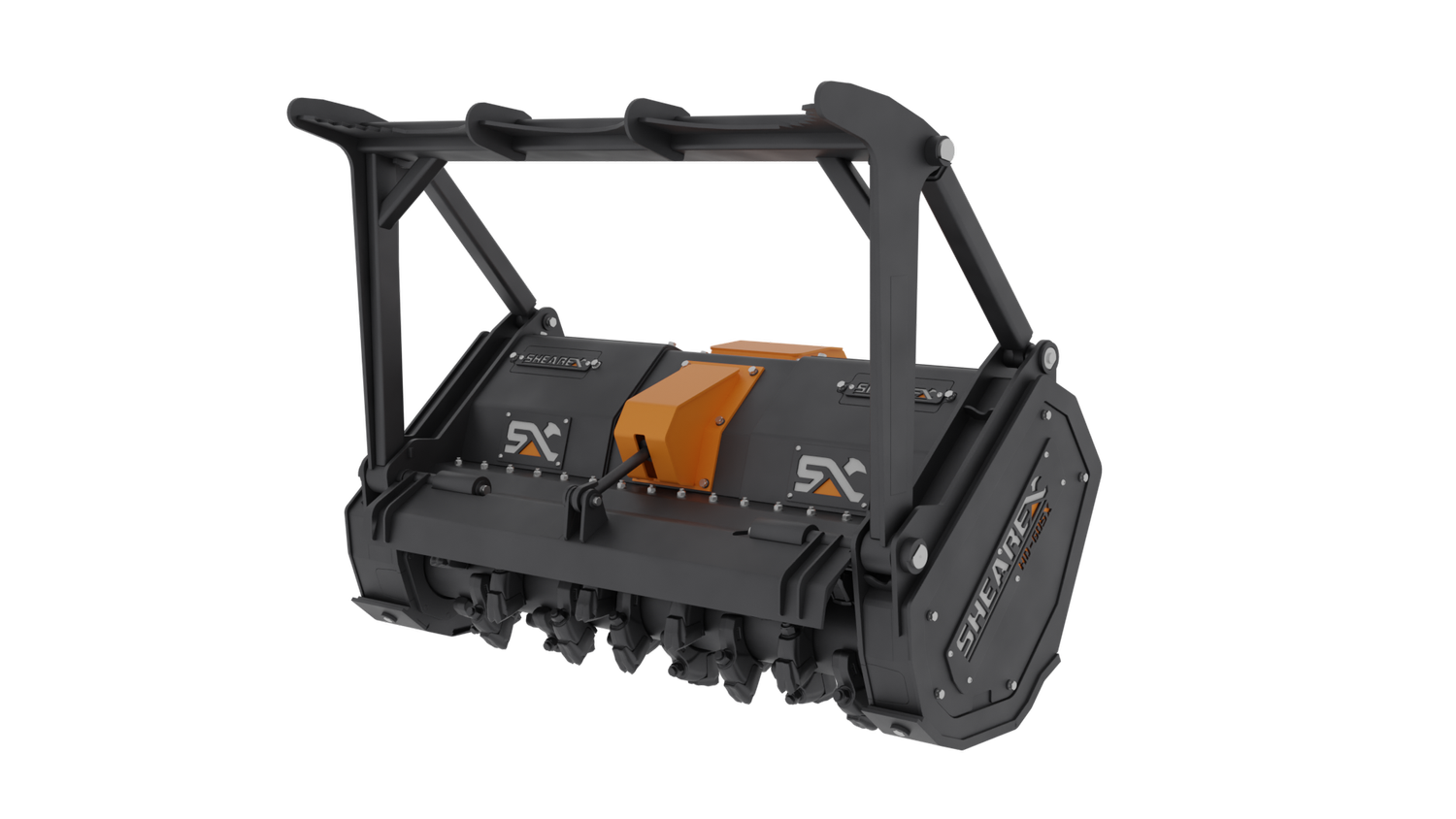

Drum Mulcher Attachment
The HD solid-drum mulcher is built for rough, rocky ground where a bite-limiter head would struggle. Double carbide teeth and Hardox® liners push through dense growth and mulch trees up to 24 inches, with a G2.0-balanced rotor for smooth, low-vibration running.
- Solid drum rotor for rough terrain
- Double carbide teeth
- Hardox® 500 liner and skid shoes
- Fast rotor recovery
- Unique hose guard against branches
- Idle oil-cooling system
Technical Specifications
HD Series · model range
| Model | HD-60SX | HD-70SY | HD-100Y2 |
|---|---|---|---|
| Min. carrier power HP (kW) | 100 (75) | 150 (112) | 250 (190) |
| Cutting width in (cm) | 59 (149) | 74.75 (190) | 100 (254) |
| Hammers on rotor | 34 | 46 | 60 |
| Optimal material dia. in (cm) | 8 (20) | 10 (25) | 24 (61) |
| Weight lbs (kg) | 2,760 (1,252) | 4,200 (1,910) | 5,500 (2,495) |
| Min. continuous flow gpm (l/min) | 28 (106) | 47 (178) | 64 (242) |
| Max. continuous flow gpm (l/min) | 46 (174) | 76 (288) | 150 (568) |
| Max. pressure PSI (bar) | 6,000 (410) | 6,000 (410) | 6,000 (410) |
| Rotor speed rpm | 2,300 | 2,200 | 2,100 |
CompatibilityFor skid steers, front-mount carriers, wheel loaders, tractors, dedicated carriers, and dozers.
